PT100 TEMPERATURE DETECTOR CABLES
GENERAL
GENERAL:
Electrical resistance of a metal conductor increases with temperature. This variation is reversible.Platinum is the metal most often used in detectors because it has a good linearity in a wide temperature range( - 200 and +850 °C). Its purity and chemical inertia give it remarkable stability.
Main Products:

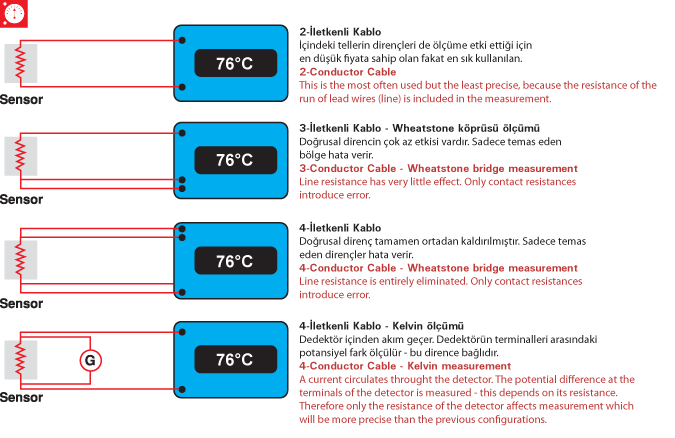

- Cables with 2,3 or 4 conductors.
- Other number of conductors on request.
- Color coding: 2 conductors: Red/white 3 conductors: Red/red/white 4 conductors: Red/red/white/white
- Standard color of silicone sheaths: Red
- Standard color of FEP or PFA sheaths: Red
- Standard color of outer fibreglass sheaths: White
- Types of core: Red, tinned or nickel plated copper.
- Outer diameters: Consult us.
PACKING
Spools or DrumsAPPLICATIONS
- Cabling for platinum resistance temperature detectors.
.png)
Approvals-Standards:
Cables and color-coding as per standards IEC 751, DIN 43760.
